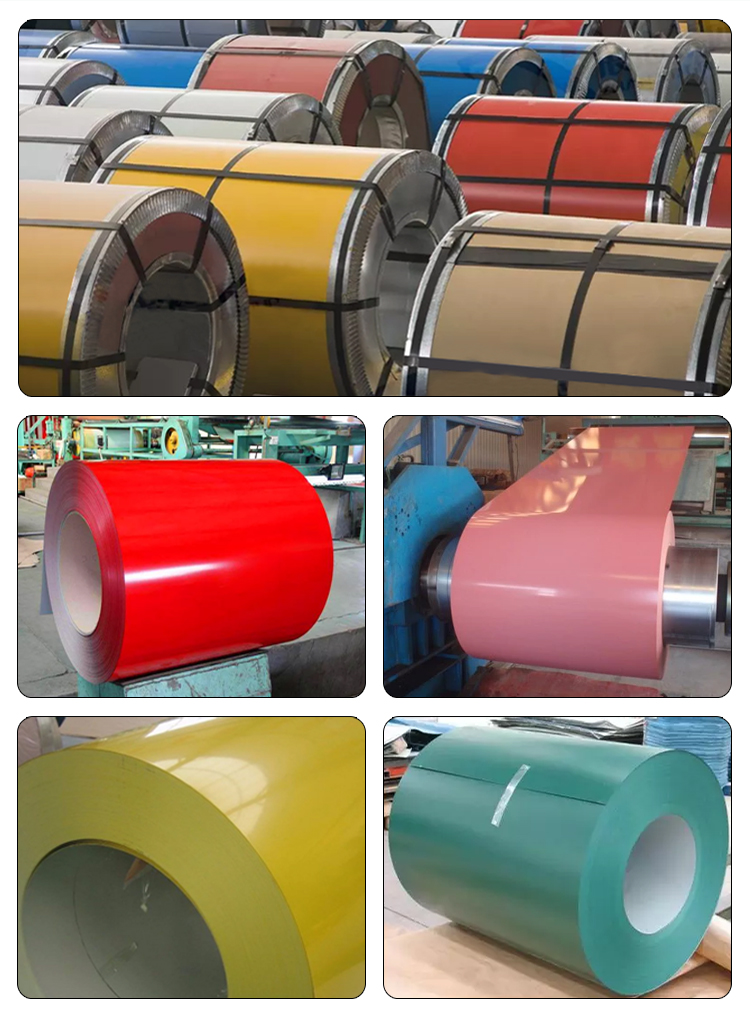

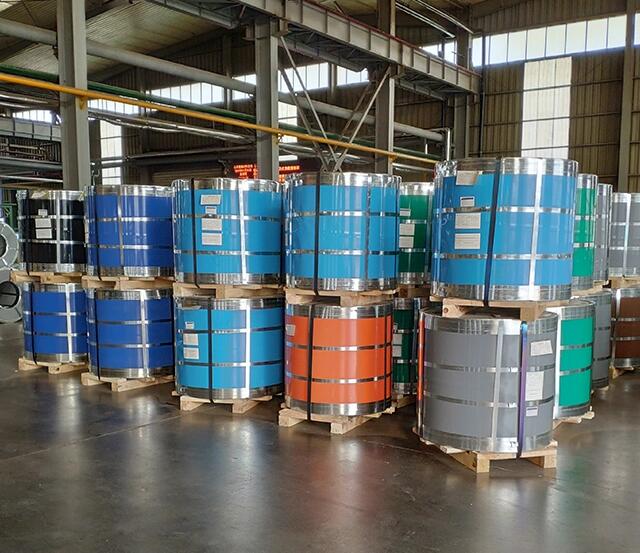

PPGI Steel Coil
PPGI is pre-painted galvanized iron, also known as pre-coated steel, coil coated steel, color coated steel etc., typically with a hot dip zinc coated steel substrate.The term is an extension of GI which is a traditional abbreviation for Galvanized Iron.
Prepainted GI / PPGI / Color Coated Galvanized Steel Coil
Production Name: | Prepainted GI / PPGI / Color Coated Galvanized Steel Coil |
Grade | Dx51D/Dx52D/Dx53D/DX54D/S220GD/S250GD/S280GD/S350GD/S350GD/S550GD; |
Standard: | AISI, ASTM, BS, DIN, GB, JIS, AS ETC |
Thickness: | 0.12-4.0mm |
Width: | 600-1500mm,914mm,1000mm,1200mm,1219mm,1220mm,1250mm Or According To Customer's Requirement |
Length: | In Coil or Customized |
Coil Weight: | 3-8 Tons |
Coil ID: | 508/610mm |
Color: | RAL Code Or According To Customer's Sample |
Surface: | Painting Type:PE,HDP,SMP,PVDF |
Zinc Coating: | 20-275g/m2 |
Type of Coating | Top Paint: PVDF, HDP, SMP, PE, PU |
Package: | Water proof paper is inner packing, galvanized steel or coated steel sheet is outer packing, side guard plate, then wrapped by seven steel belt, or according to customer's requirement |
Application: |
Packing & Delivery:

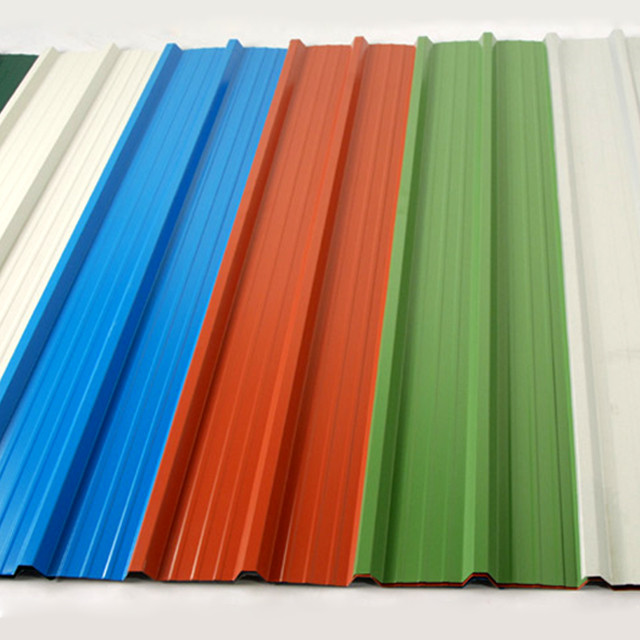

PPGI Steel Corrugated Roof Sheet
Thickness | 0.12mm-2.0mm | ||||
Width | 600~1250mm | ||||
Length | 1000-11800mm | ||||
Grade | DX51D+Z | CS A | SGCC | SGC340 | S220GD+Z |
Zn Coating | Z30-Z275 | ||||
Color | According to RAL code | ||||
Coating Types | PE, SMP, JD, HDP, PVDF | ||||
Coating | Top Paint: 10~25 micron | ||||
Back Paint: 5~12micron | |||||
Type of coating process | Front: Double Coated & Double Drying | ||||
Back: Double Coated & Double Drying, Single Coated &Double Drying | |||||
Finish | High light, Glossy,Matte | ||||
Packing | Standard export package (Plastic film in the first layer, second layer is Kraft paper. Third layer is galvanized sheet+package strip+corner protected, one pallet about 3 tons) | ||||

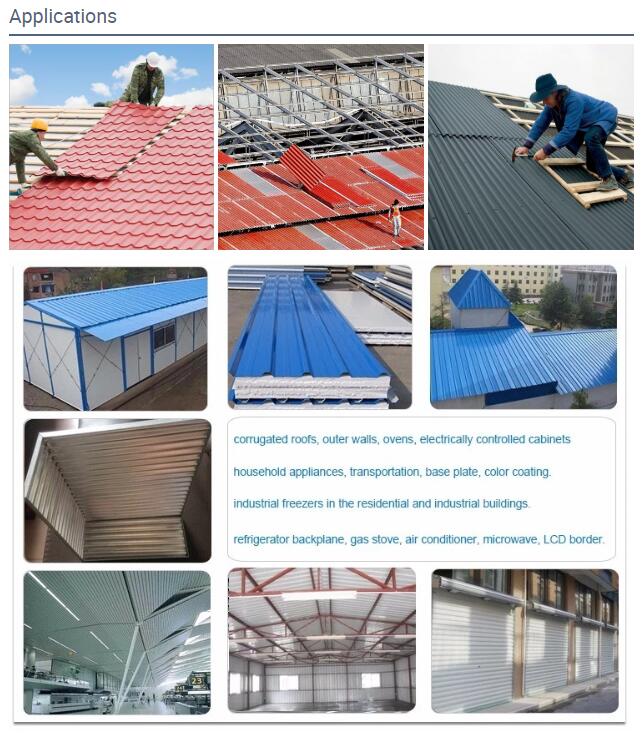

Application | Building Industry, Structural Use, Roofing, Commercial Use, Household Appliance, Industry Facilities, Office Buildings | ||||
Advantages | 1.Design according to customers 'requirements |
Chemical Composition and Mechanical Properties
Steel grades | Chemical composition% | | Tensile strength | Yield strength | |||||
C% | Si% | Mn% | P% | S% | Alt | ||||
SGCC, DX51D+Z | 0.07 | 0.03 | 0.50 | 0.025 | 0.025 | 0.020 | | 270-500 | 140-280 |
DX52D+Z | 0.06 | 0.03 | 0.45 | 0.025 | 0.025 | 0.020 | 270-420 | 140-300 | |
DX53D+Z | 0.03 | 0.03 | 0.40 | 0.020 | 0.020 | 0.020 | 270-380 | 140-260 | |
S220GD+Z | 0.17 | 0.30 | 1.00 | 0.035 | 0.30 | 0.020 | 300-440 | >220 | |
S250GD+Z | 0.17 | 0.30 | 1.00 | 0.035 | 0.30 | 0.020 | 330-470 | >250 | |
S350GD+Z | 0.20 | 0.55 | 1.60 | 0.035 | 0.30 | 0.020 | 420-560 | >350 |

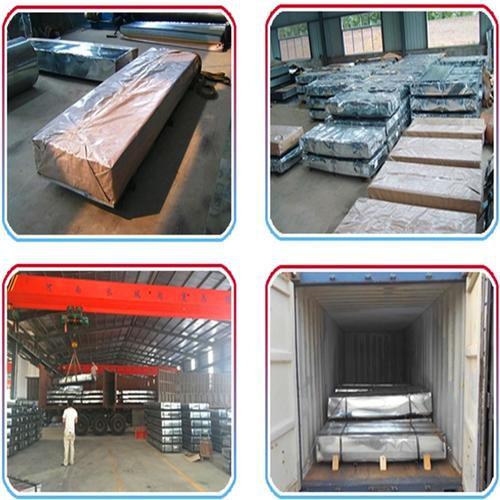

Packing & Shipping:

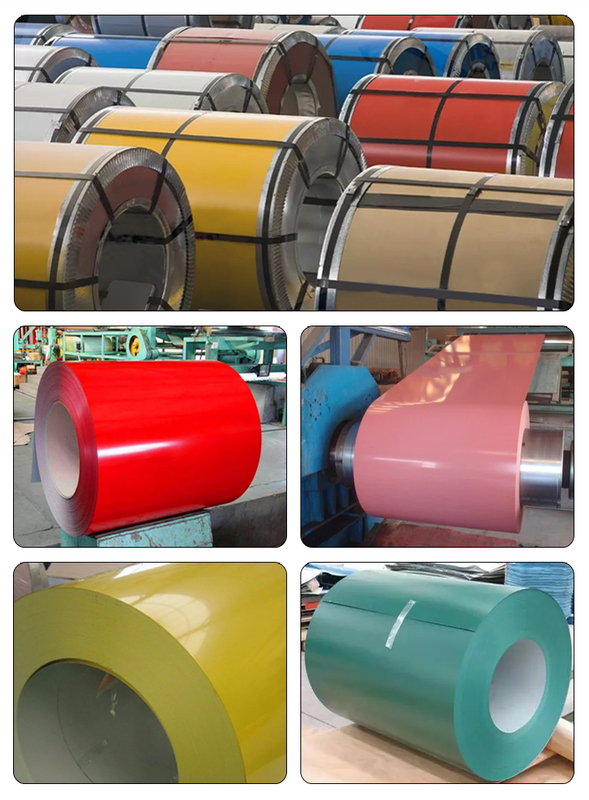

PPGI Steel Coil
