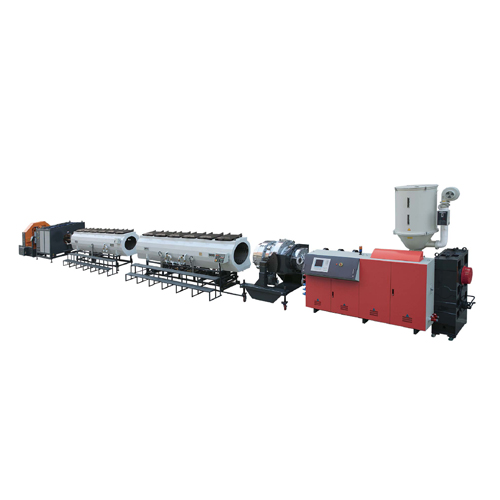

Pipe Extrusion Line

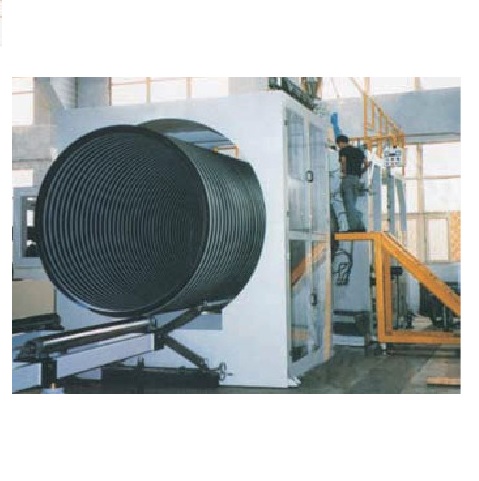

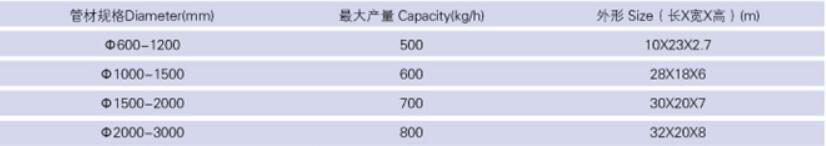

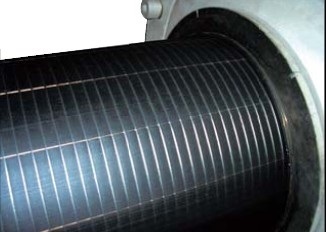

The Huge Calibre Hollowness Wall (Steel Framed) Winding Pipe Extrusion Line:
Properties: Adopting two steps type decompression screw, with specially mixing and plasticization component, together with high twist torque and high temperature control accuracy mack 90% of recycle material can be used in production.
Advanced PLC computer control system, high precision temperature control module block, whole color touch displaying screen to ensure convenient, stable and dependable operation.

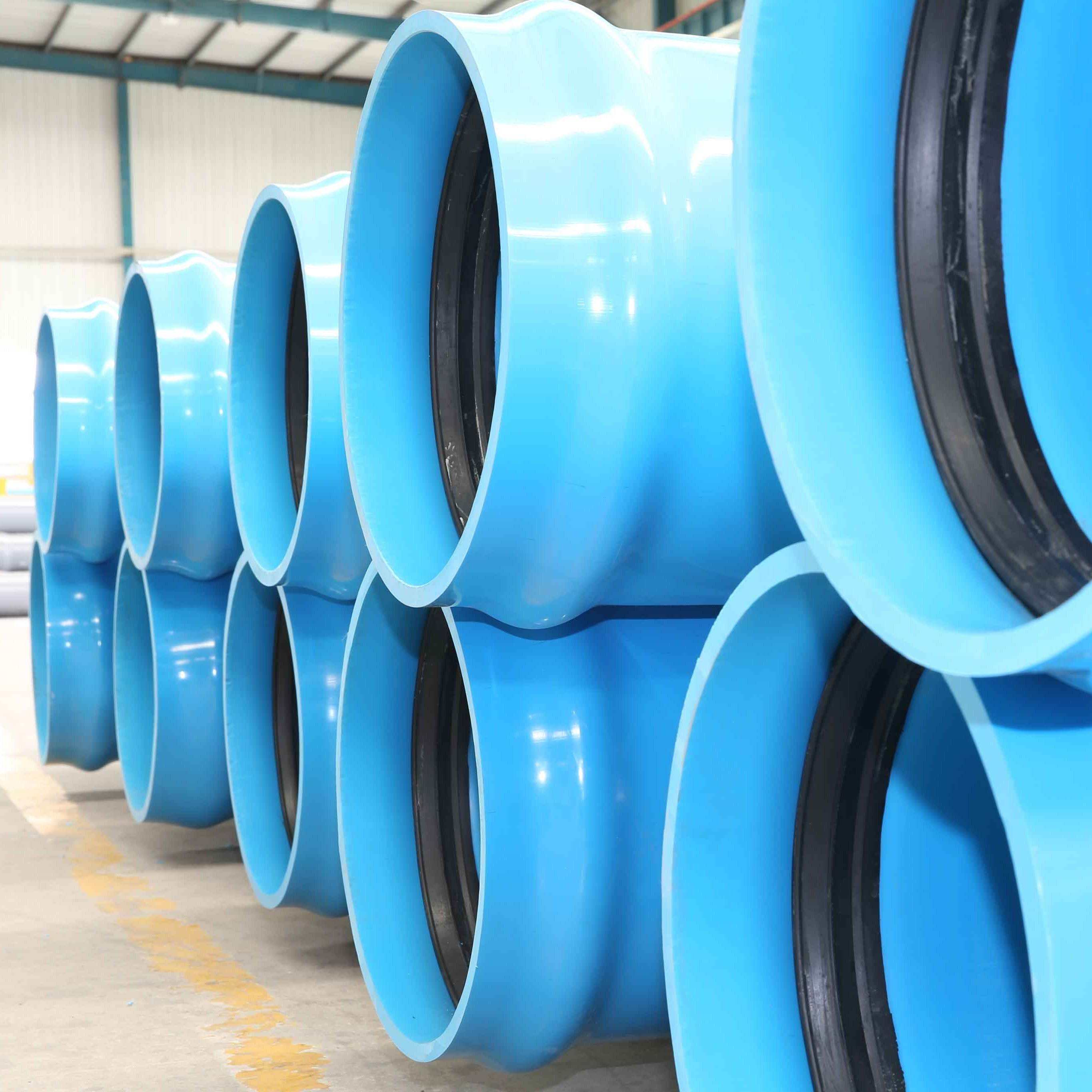

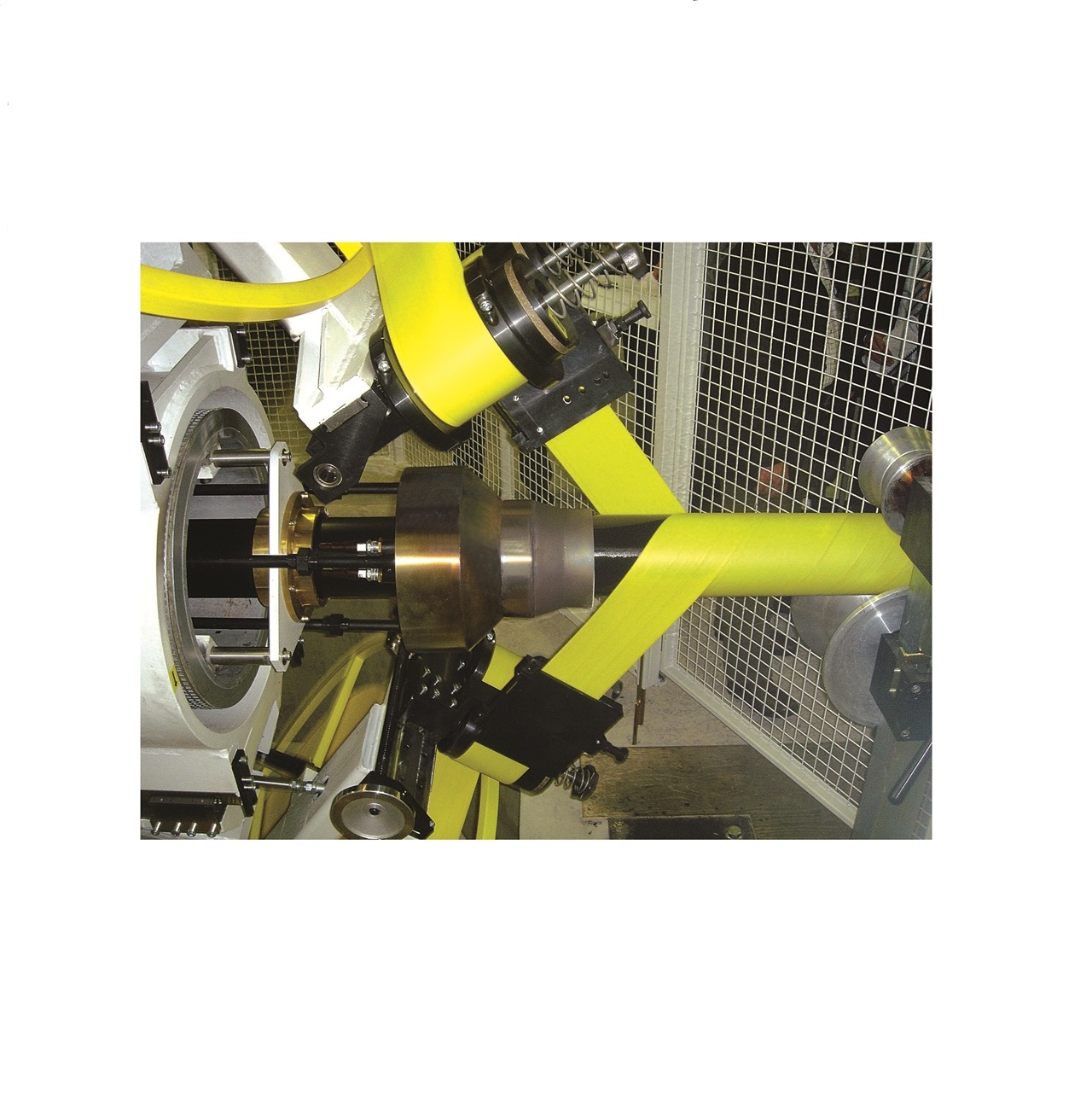

RTP Reinforced Pipe Extrusion Line:
Two types of fiber reinforced pipe.The pressure of Aramid fiber reinforced pipe is up to 9-14Mpa. The explode pressure can be 40Mpa. Thermoplastic reinforced pipe RTP.
The thermoplastic reinforced pipe RTP has three layers:
the inner layer is anti-erosion and wearing-resistant PE pipe;
the middle layer is reinforced twisting layer (the material is high-intension synthesized fiber, or glass fiber, carbon fiber or fine metal thread);
the outer layer is PE for protection use.
The RTP connection technology:The connection method between the RTP and RTP, RTP side and other fittings (such as valve, three direction fittings) is: Electrical welding-hot welding and mechanical press.

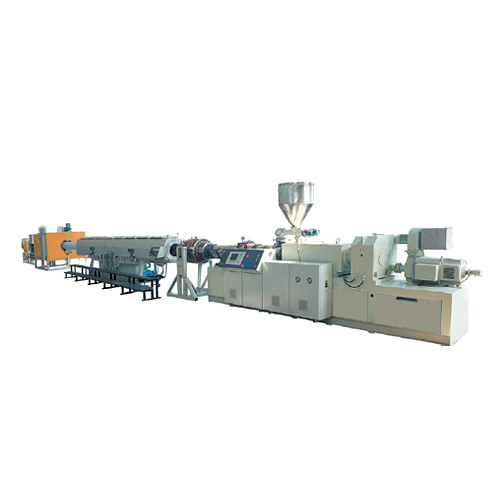

PVC-C Cable Protection Pipe Extrusion Line:
Advantage: This line can produce anti high pressure, anti high temperature, anti-aging, anti-chemical, good insulation PVC pipe.
It is the first choice for the high voltage cable protection and hot water pipe. This line can solve the problems of high temperature melting, high viscosity, easy-decomposition.
The special designed screw, gearbox, tooling, and PLC system make the line reliable and easy operation.
Single Layer or Multi-Layer PP, PE Pipe Extrusion Line:
Application: widely used for supply water,drain water,gas supply,mining exploring,and non-excavated areas.
Performance and Advantages:
PVC extrusion mould design and optimization of double-stent flow of the design to make pipes with strong shock resistance.
PE extrusion mould with spiral distribution technology, combined with concentric, cone distributer, suitable for any cross section of single-or multi-extrusion, smooth spiral flow design have below advantages：
Providing high quality fluence,no any corner during fluent
Lower consumption
Lower melting temperature
Clean runner quickly when changing color
Single layer extrusion mould
HDPE it suitable for gas supply, water supply pressure pipe, max diameter is 1600mm
PPR suitable for 160mm hot water pipe
PERT,PEX suitable for supply heating temperature underground
PA suitable for car oil pipe and gas pipe

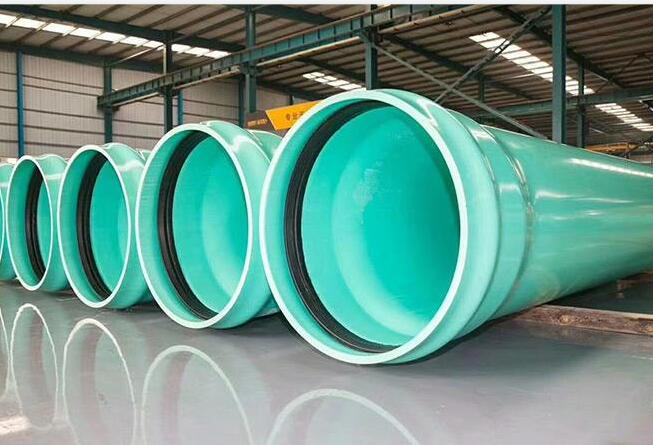

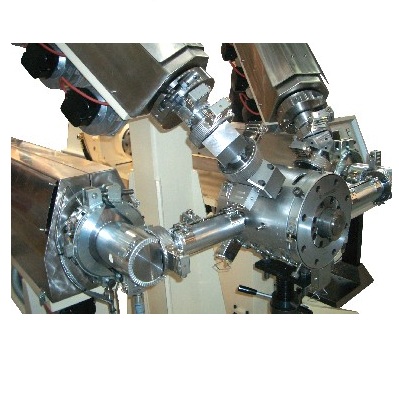

Multi layers co-extrusion mould
EVOH oxygen resistance layer with a three-layer co-extrusion of the hot water pipe
With anti-friction or scratch the M-PP-dig tube layer co-extruded
Silicone inner layer with a silicon core pipe extrusion
PE100 material with two or three layer co-extrusion water and gas pipes,
with diameters up to 1600mm

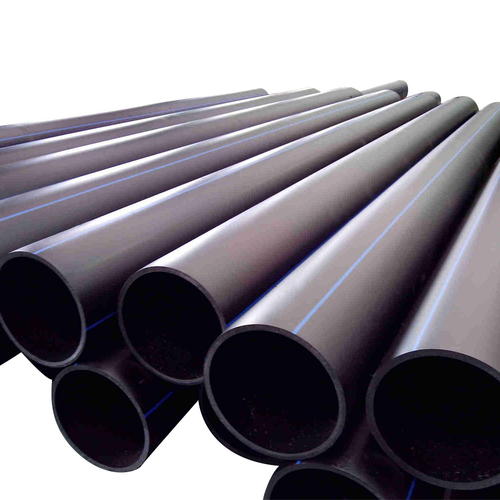

PPR \ PE-RT \ PEX Pipe Extrusion Line:
Application field:
This line is widely used in house mart hospital palaestra and country water supply and pipe for the radiate warm field.
Performance excellence：
Our company using the development HDPE/PPR pipes extrusion line technology develops this kind of extrusion line. This line feature compact structure,highly automation and easy.
The screw using for the BM type,high output,best plastic and stabilization.

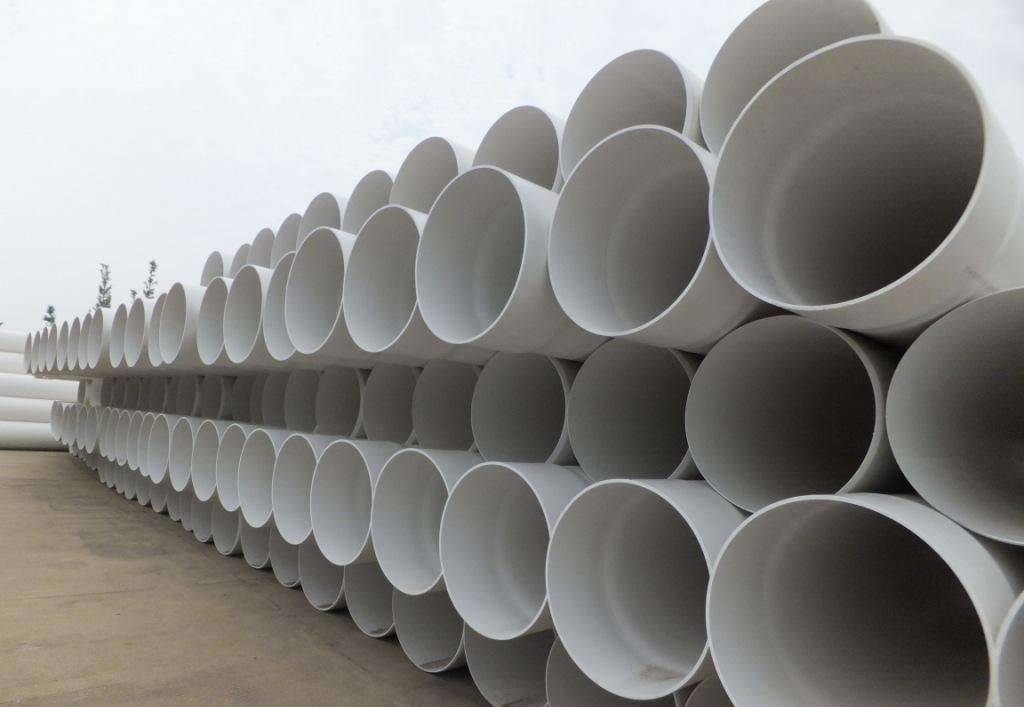

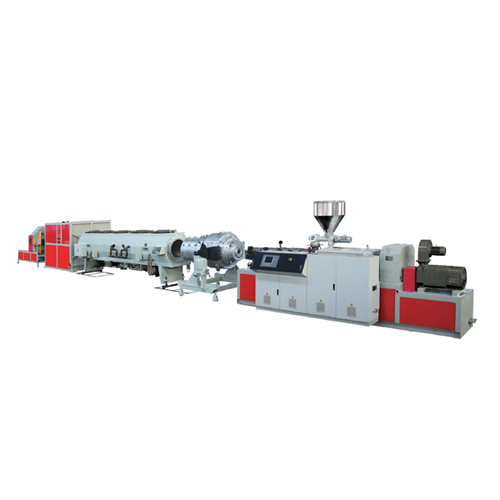

Large Diameter UPVC Pipe Extrusion Line:
Application field:
This line is widely used in producing water supply and waterspout field.
Performance excellence：
Our company using the development HDPE/PPR pipes extrusion line technology develops this kind of extrusion line. This line feature compact structure,highly automation and easy.
It’s suitable for the 800mm diameter pipes extruder.
The screw using for the twin-screw and parallel screw type,high output,best plastic and stabilization.haul-off unit have two claws, three claws, four claws and six claws,cutter has ring and star cutter.

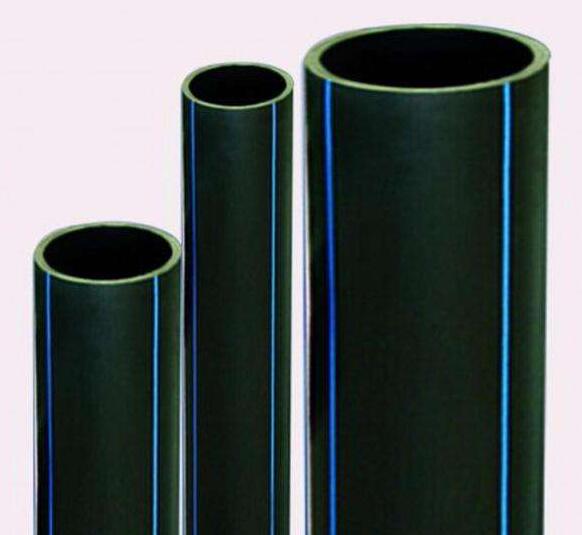

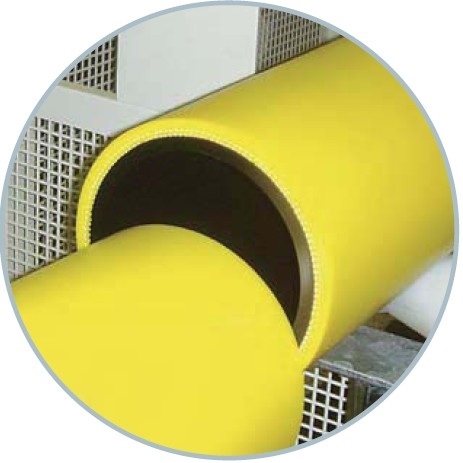

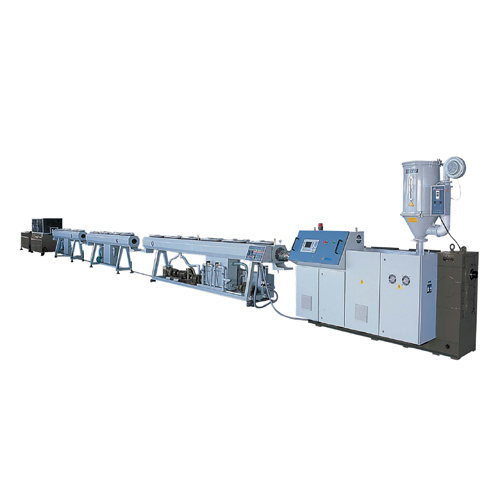

HDPE Water and Gas Supply Pipe Extrusion Line:
Application field:
This line is widely used in producing HDPE water,gas supply pipe,double-anti pipe for mine industries.
Performance excellence：
Our company using the development HDPE/PPR pipes extrusion line technology develops this kind of extrusion line. This line feature compact structure,highly automation and easy.
It’s suitable for the HDPE/PPR pipes extruder.
The screw using for the BM type,high output,best plastic and stabilization.
