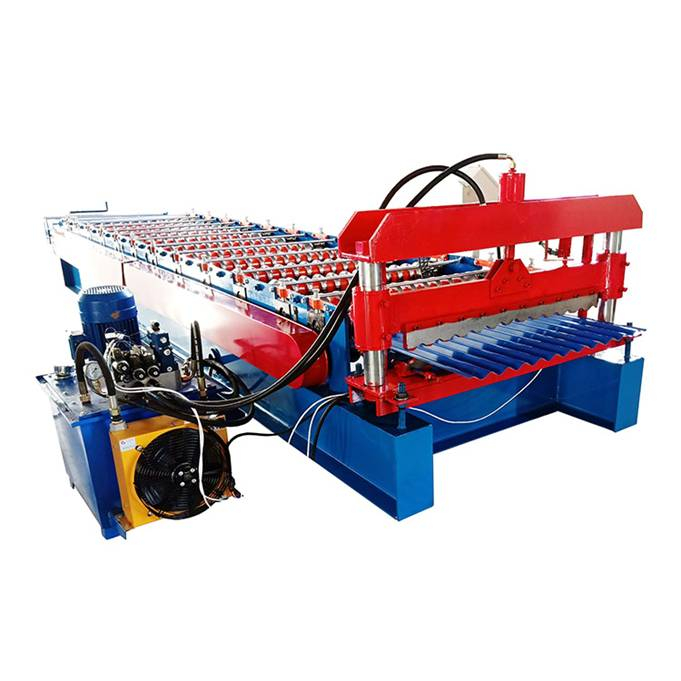

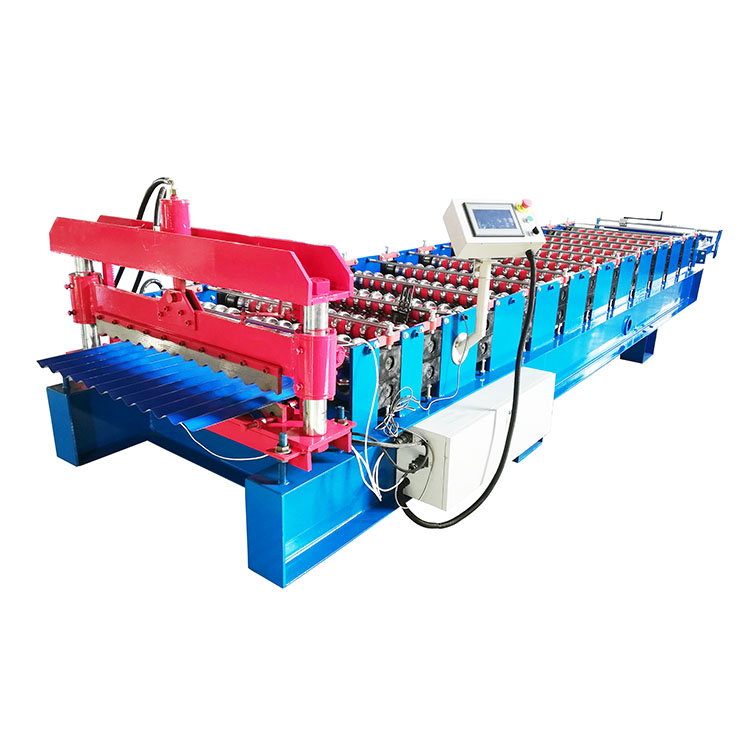

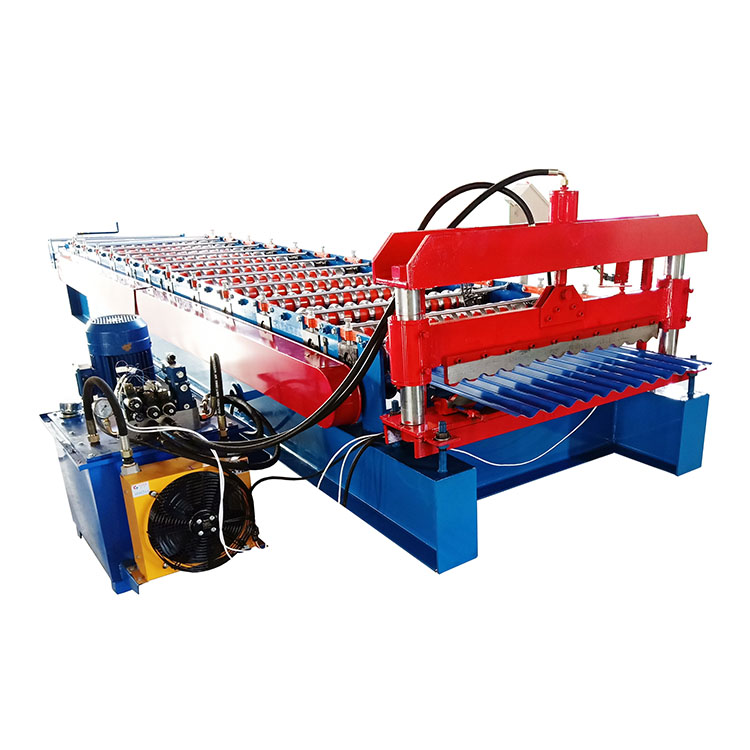

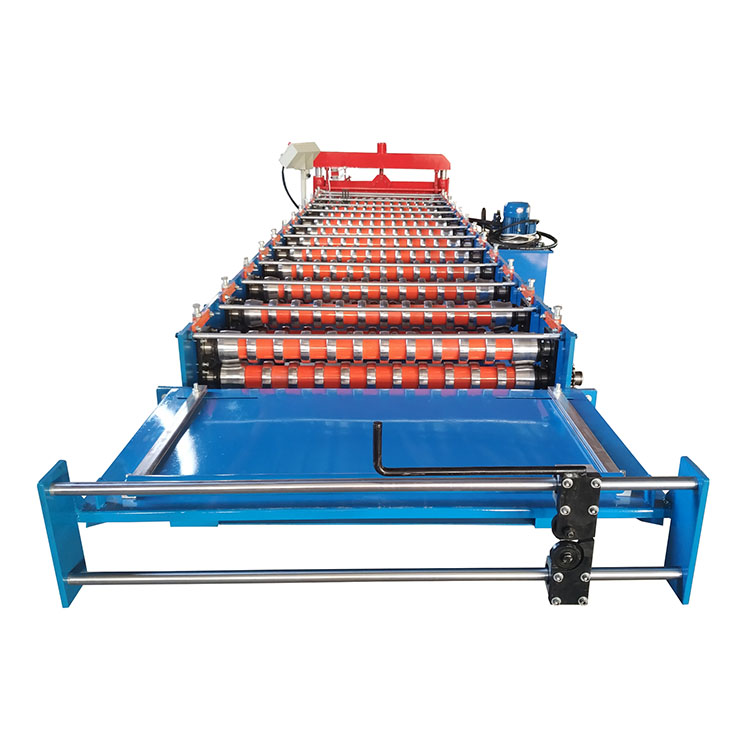

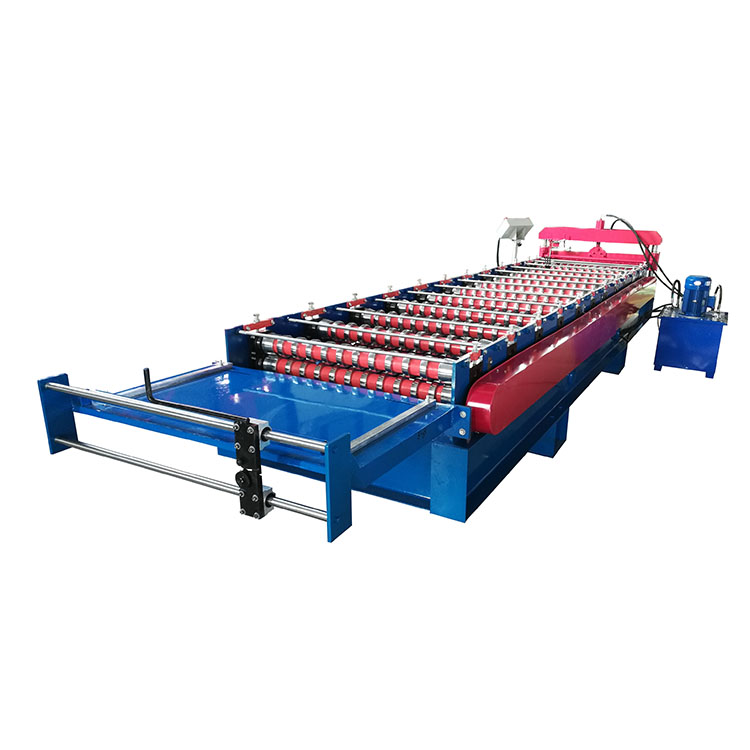

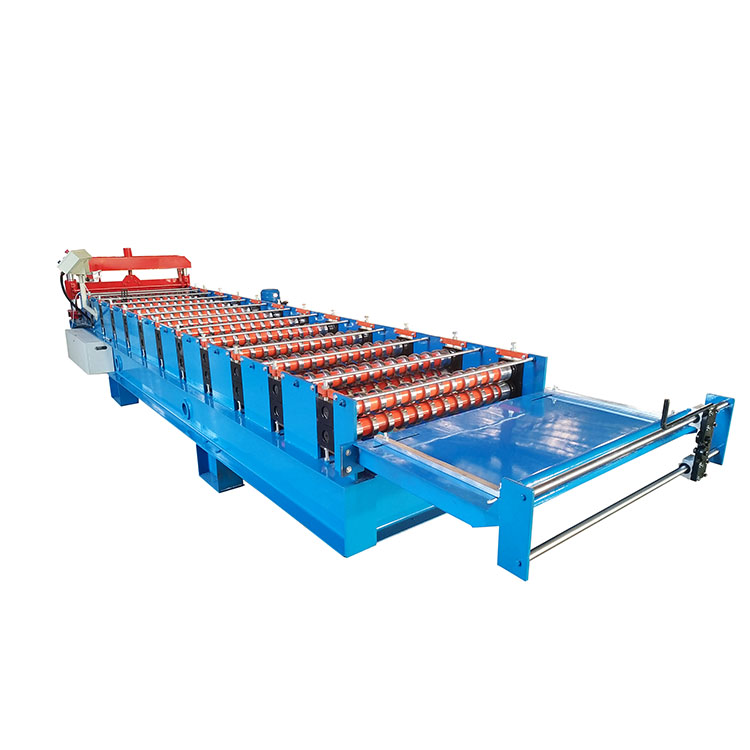

Roll Forming Machine
Technical Parameters:
Suitable Material | Material | GI, PPGI, PPGL |
Width | 1000mm | |
Thickness | 0.2-0.8mm | |
Yield Strength | Q235 | |
Material of Rollers | High Grade 45# Forged Steel, Surface Hard Chromium Plating | |
Rows of Rollers | 11 Stations | |
Material of Shafts | High Grade 45# Forged Steel | |
Diameter of Shafts | 70mm | |
Material of Cutting Blade | Cr12 Heat Treatment | |
Cutting Mode | Hydraulic Guide Column | |
Speed | 20-25m/min | |
Side Plate Thickness | 16 mm | |
Chain Size | 1 Inch | |
Total Power | 4 KW | |
Voltage | 380V 50HZ 3Phase | |
Appearance Size (About) | 5800mm*1300mm*1500mm | |
Weight (About) | 2.5 tons | |
Length Measurement | Encoder | |
Control Mode | PLC | |
Operating Mode | Button +Touch screen |
Production Process:
Uncoiling→ Feeding Material Into Machine →Roll Forming → Auto Cutting →Products Receiving
